55 - Road Classification and OTP

Ridership and External Factors

Coverage: 2019-01 to 2025-11 (from otp_monthly).

Built 2026-06-15 11:52 UTC · Commit e5cf673

Page Navigation

Analysis Navigation

Data Provenance

flowchart LR
  55_road_classification_otp(["55 - Road Classification and OTP"])
  t_otp_monthly[("otp_monthly")] --> 55_road_classification_otp
  01_data_ingestion[["Data Ingestion"]] --> t_otp_monthly
  u1_01_data_ingestion[/"data/routes_by_month.csv"/] --> 01_data_ingestion
  u2_01_data_ingestion[/"data/PRT_Current_Routes_Full_System_de0e48fcbed24ebc8b0d933e47b56682.csv"/] --> 01_data_ingestion
  u3_01_data_ingestion[/"data/Transit_stops_(current)_by_route_e040ee029227468ebf9d217402a82fa9.csv"/] --> 01_data_ingestion
  u4_01_data_ingestion[/"data/PRT_Stop_Reference_Lookup_Table.csv"/] --> 01_data_ingestion
  u5_01_data_ingestion[/"data/average-ridership/12bb84ed-397e-435c-8d1b-8ce543108698.csv"/] --> 01_data_ingestion
  t_route_road_class[("route_road_class")] --> 55_road_classification_otp
  12_road_classification[["Road Classification Overlay ETL"]] --> t_route_road_class
  u1_12_road_classification[/"data/penndot-roadclass/roadwaysegments.json"/] --> 12_road_classification
  u2_12_road_classification[/"data/penndot-roadclass/roadwayadmin.json"/] --> 12_road_classification
  u3_12_road_classification[/"data/GTFS/shapes.txt"/] --> 12_road_classification
  u4_12_road_classification[/"data/GTFS/trips.txt"/] --> 12_road_classification
  u5_12_road_classification{"PennDOT ArcGIS Roadway Segments Layer (RMSSEG)"} --> 12_road_classification
  u6_12_road_classification{"PennDOT ArcGIS Roadway Admin Layer"} --> 12_road_classification
  t_route_traffic[("route_traffic")] --> 55_road_classification_otp
  04_traffic_overlay[["Traffic Overlay ETL"]] --> t_route_traffic
  u1_04_traffic_overlay[/"data/penndot-traffic/aadt_raw.json"/] --> 04_traffic_overlay
  u2_04_traffic_overlay[/"data/GTFS/shapes.txt"/] --> 04_traffic_overlay
  u3_04_traffic_overlay[/"data/GTFS/trips.txt"/] --> 04_traffic_overlay
  u4_04_traffic_overlay{"PennDOT ArcGIS Roadway Traffic Layer"} --> 04_traffic_overlay
  t_route_stops[("route_stops")] --> 55_road_classification_otp
  01_data_ingestion[["Data Ingestion"]] --> t_route_stops
  t_routes[("routes")] --> 55_road_classification_otp
  01_data_ingestion[["Data Ingestion"]] --> t_routes
  t_stops[("stops")] --> 55_road_classification_otp
  01_data_ingestion[["Data Ingestion"]] --> t_stops
  d1_55_road_classification_otp(("numpy (lib)")) --> 55_road_classification_otp
  d2_55_road_classification_otp(("polars (lib)")) --> 55_road_classification_otp
  d3_55_road_classification_otp(("scipy (lib)")) --> 55_road_classification_otp
  classDef page fill:#dbeafe,stroke:#1d4ed8,color:#1e3a8a,stroke-width:2px;
  classDef table fill:#ecfeff,stroke:#0e7490,color:#164e63;
  classDef dep fill:#fff7ed,stroke:#c2410c,color:#7c2d12,stroke-dasharray: 4 2;
  classDef file fill:#eef2ff,stroke:#6366f1,color:#3730a3;
  classDef api fill:#f0fdf4,stroke:#16a34a,color:#14532d;
  classDef pipeline fill:#f5f3ff,stroke:#7c3aed,color:#4c1d95;
  class 55_road_classification_otp page;
  class t_otp_monthly,t_route_road_class,t_route_stops,t_route_traffic,t_routes,t_stops table;
  class d1_55_road_classification_otp,d2_55_road_classification_otp,d3_55_road_classification_otp dep;
  class u1_01_data_ingestion,u1_04_traffic_overlay,u1_12_road_classification,u2_01_data_ingestion,u2_04_traffic_overlay,u2_12_road_classification,u3_01_data_ingestion,u3_04_traffic_overlay,u3_12_road_classification,u4_01_data_ingestion,u4_12_road_classification,u5_01_data_ingestion file;
  class u4_04_traffic_overlay,u5_12_road_classification,u6_12_road_classification api;
  class 01_data_ingestion,04_traffic_overlay,12_road_classification pipeline;

Findings

Findings: Road Classification and OTP

Summary

Road type explains OTP, and lane count is the driver. Adding a road-type block (length-weighted lane count, functional class, and posted speed) to the six-feature structural baseline raises R² from 0.40 to 0.58 (adjusted R² 0.36 → 0.54; joint F = 11.6, p < 0.001). The single feature doing the work is lane count: routes that run along wider, multi-lane roads are reliably later, independent of how many stops they make or how far they travel. This succeeds where Analysis 27 found a null for traffic volume (AADT), and it more than doubles the explanatory gain that truck percentage — Analysis 27's best traffic predictor — could provide.

Key Numbers

  • 89 routes analyzed (88 bus, 1 rail) after filtering match_rate >= 0.3; all 98 routes matched, none excluded for low coverage (median match rate ~93%).
  • Structural baseline (6 features): R² = 0.40, Adj R² = 0.357 — reproduces Analysis 27's baseline exactly.
  • + lane count alone: Adj R² = 0.515 (+0.16).
  • + full road-type block: R² = 0.583, Adj R² = 0.536 (+0.18 R²); joint F = 11.6, p < 0.001.
    • truck % (Analysis 27's predictor, same sample): R² = 0.451 — well below the road-type block.
  • Lane count beta weight = −0.38 (p < 0.001), tied with span as the strongest predictor in the model.
  • Posted speed beta = +0.29 (p = 0.021); functional class not significant (p = 0.11).
  • All VIFs ≤ 3.5 (lane count VIF = 1.46). Lane count is uncorrelated with stop count (r = +0.02) and span (r = −0.08) — its contribution is genuinely independent.
  • Bus-only subset: identical story (Adj R² 0.328 → 0.515, joint F = 11.6, p < 0.001).
  • Lane-count range across matched routes: 1.6 – 2.5 weighted lanes.

Observations

  • More lanes, later buses. The bivariate correlation between length-weighted lane count and OTP is r = −0.47 — the strongest single road-attribute correlate of OTP in the project. In the full model it survives at beta = −0.38, p < 0.001.
  • Lanes and speed pull in opposite directions, and that resolves Analysis 27's sign puzzle. Holding lane count fixed, higher posted speed is associated with better OTP (beta +0.29). The coherent reading is that the problematic roads are congested multi-lane urban arterials with low effective speeds — many lanes, signalized intersections, heavy turning and cross-traffic — not high-speed highways. A wide road that also moves fast is fine; a wide road that crawls is where buses fall behind.
  • This is what truck % was reaching for. Analysis 27 found truck percentage was its only significant traffic predictor and argued it proxied road type. Replacing the proxy with direct road-type measures roughly triples the gain (truck adds +0.05 R²; the road-type block adds +0.18), confirming that interpretation and superseding it.
  • Independent of route geometry. Lane count's near-zero correlation with stop count and span (and its low VIF) means it is not just re-encoding "long route" or "many stops." It captures a distinct dimension: the kind of road the route operates on.

Discussion

Across Analyses 18, 26, and 27 the model-building narrative had stalled at ~40–47% of OTP variance explained by route geometry and mode, with traffic volume contributing nothing and the remainder attributed to operational factors not in the data. This analysis moves the ceiling: a single, cleanly measured road attribute — how many lanes the route runs along — lifts explained variance to ~58%.

The mechanism is intuitive once lane count and speed are separated. Pittsburgh's worst-performing corridors (e.g., routes 71B, 88, 58, the 61-series) thread multi-lane arterials through dense neighborhoods: more lanes mean more signal phases, more turning conflicts, more boarding friction at busy stops, and more exposure to incident-driven backups — all of which degrade schedule adherence even though the road has nominal capacity. The positive speed coefficient is the tell: where those wide roads actually carry traffic at speed, buses keep their schedule.

For policy this is more actionable than the AADT null. Lane count and functional class are fixed, mappable attributes of the road network, so this offers a structural screen for where transit-priority treatments (signal priority, bus lanes, queue jumps, stop consolidation on arterials) are most likely to pay off — namely the multi-lane, low-speed arterial segments, not the quiet neighborhood streets.

Caveats

  • Ecological, area-level association. These are route-level relationships between the road network a route traverses and its average OTP, not claims about individual trips or stops.
  • Lane count is a route-average exposure, length-weighted over PennDOT segments within 30 m of the GTFS shape. It does not distinguish where along the route the wide-road segments fall, nor time-of-day conditions.
  • PennDOT state-route coverage. The RMSSEG layers cover state-administered roads; purely local streets are underrepresented (the same limitation as Analysis 27). Match rates are high (median ~93%), but segments on city-maintained streets may be missing — the Pittsburgh city centerline is a documented phase-2 extension.
  • Functional class added little on its own (p = 0.11); the lane-count and speed channels carry the road-type signal, so the headline rests on those two.
  • Correlation, not proven causation. Lane count plausibly proxies a bundle of co-located features (signal density, land use, congestion); the analysis shows it is a strong, independent predictor, not that adding or removing a lane would change OTP.

Validation

Data inputs

  1. Data source verified. All road-type columns were read from route_road_class, built by pipeline step 12 (road_overlay.py) from the PennDOT roadwaysegments and roadwayadmin ArcGIS layers; field names were taken from the live REST schema, not from memory, and documented in data/penndot-roadclass/SOURCE.md. The query result is validated against the ROUTE_ROAD_CLASS schema (validate(..., subset=True)).
  2. Geographic/temporal scope matches. OTP is averaged over routes with 12+ months of data; road-type metrics are matched to the same GTFS route shapes and filtered to match_rate >= 0.3, identical to Analysis 27's inclusion rule. All road data is Allegheny County (CTY_CODE='02').
  3. Null/missing handling. Routes lacking a weighted lane count, functional class, speed, or any structural feature are dropped before modeling (none were, beyond the match-rate filter). Length-weighting skips segments with missing values rather than counting them as zero.

Results plausibility

  1. Aggregates sanity-checked. The structural baseline reproduces Analysis 27's R² of 0.40 exactly on the same sample, confirming the baseline replication is correct. Lane-count range (1.6–2.5) and speed range are physically sensible for urban arterials.
  2. Surprising result investigated. The large R² jump (+0.18) was checked for artifact: lane count's VIF is 1.46 and it is essentially uncorrelated with stop count (r = +0.02) and span (r = −0.08), so the gain is not collinearity-driven double-counting. The bivariate r = −0.47 is consistent with the multivariate beta.
  3. Direction of effects checked. Known structural relationships retain expected signs (more stops → lower OTP; longer span → lower OTP; rail → higher OTP). The lane-count sign (more lanes → lower OTP) initially appears to conflict with Analysis 27's positive truck-% coefficient, but the simultaneous positive speed coefficient resolves it: the signal is congested low-speed arterials, consistent with both findings.

Statistical diagnostics

  1. Multicollinearity checked. VIF computed for every predictor in the full model; all ≤ 3.5, none above the 5 threshold. Reported in output/vif_table.csv.
  2. Small-sample routes flagged. Route-level OTP requires 12+ months; the match-rate floor (0.3) excludes routes with poor road coverage. 89 routes met both criteria.
  3. Ecological framing. Findings are described as route-level / area-level associations throughout; no individual-trip claims are made.

Output

Methods

Methods: Road Classification and OTP

Question

Does the type of road a route runs on -- lane count, functional class, and posted speed -- explain OTP variance beyond the structural features (stop count, geographic span, mode, etc.) of the Analysis 18 model? Analysis 27 found that traffic volume (AADT) does not, and that the only traffic-related predictor with signal was truck percentage, which it argued was a noisy proxy for road type. This analysis tests road type directly.

Approach

  • Replicate the Analysis 18 / 27 six-feature structural OLS baseline on routes with matched road-classification data (match_rate >= 0.3).
  • Add a road-type block -- length-weighted lane count, functional class, and posted speed -- and compare adjusted R-squared against the baseline using a nested F-test.
  • Fit an intermediate model with lane count alone to isolate its contribution (the bivariate spike showed lane count is by far the strongest road attribute, r = -0.47 with OTP).
  • Fit a truck-percentage model (base + avg_truck_pct from route_traffic) on the same sample, so the road-type block can be compared head-to-head against Analysis 27's best traffic predictor.
  • Compute VIF for the full road-type model. Lane count, functional class, and speed are expected to intercorrelate and to correlate with stop count and span -- flag any predictor with VIF > 5 and interpret coefficient attribution with that in mind.
  • Report arterial_share and divided_share descriptively (Pearson r with OTP); they are not added to the regression to avoid inflating collinearity.
  • Repeat the base-vs-road-block comparison on the bus-only subset.
  • Charts: lane-count vs OTP scatter, adjusted-R² progression across nested models, standardized-coefficient comparison, and a partial-residual plot for lane count.

All regression helpers (compute_span, fit_ols, compute_vif, f_test_nested) are replicated locally so the analysis does not import from Analysis 18/27 (analyses must be independent).

Data

Name Description Source
otp_monthly route_id, month, otp (averaged to route level, 12+ months required) prt.db table
route_road_class route_id, weighted_lanes, weighted_func_cls, weighted_speed, arterial_share, divided_share, match_rate (built by road_overlay.py, pipeline step 12) prt.db table
route_traffic route_id, avg_truck_pct (for head-to-head comparison) prt.db table
route_stops stop counts, trip frequencies prt.db table
stops lat, lon for geographic span; muni for municipality count prt.db table
routes route_id, mode for subtype classification prt.db table

Inclusion: routes with 12+ months of OTP and route_road_class.match_rate >= 0.3. Road-type metrics are length-weighted over the PennDOT segments within 30 m of the route's GTFS shape. Functional class uses FHWA codes (1 = Interstate ... 7 = Local); lower values denote more major roads. divided_share treats DIVSR_TYPE = '0' as undivided and any other code as divided.

Output

  • output/model_comparison.csv -- regression results for all models
  • output/vif_table.csv -- VIF values for the full road-type model
  • output/route_road_class_summary.csv -- per-route road-type metrics with OTP

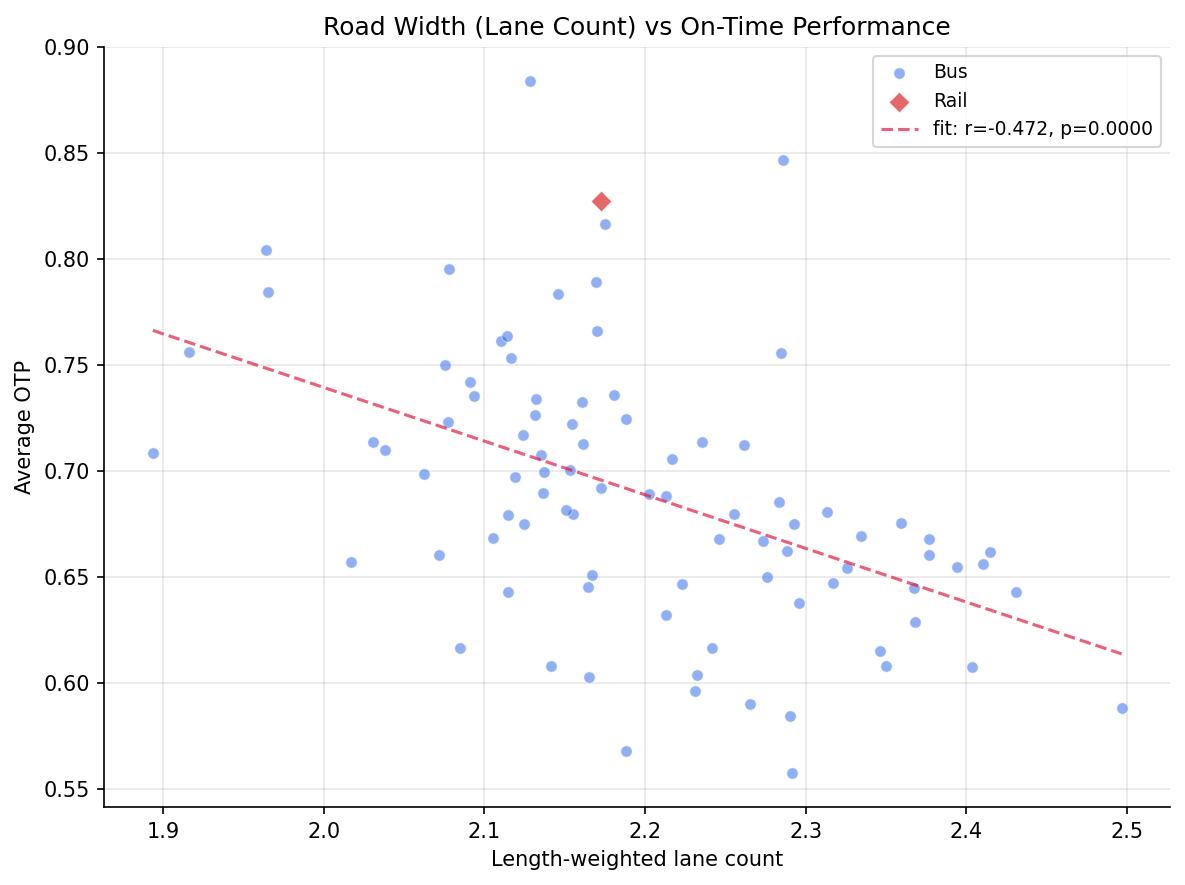

  • output/lanes_vs_otp_scatter.png -- bivariate scatter of lane count vs OTP

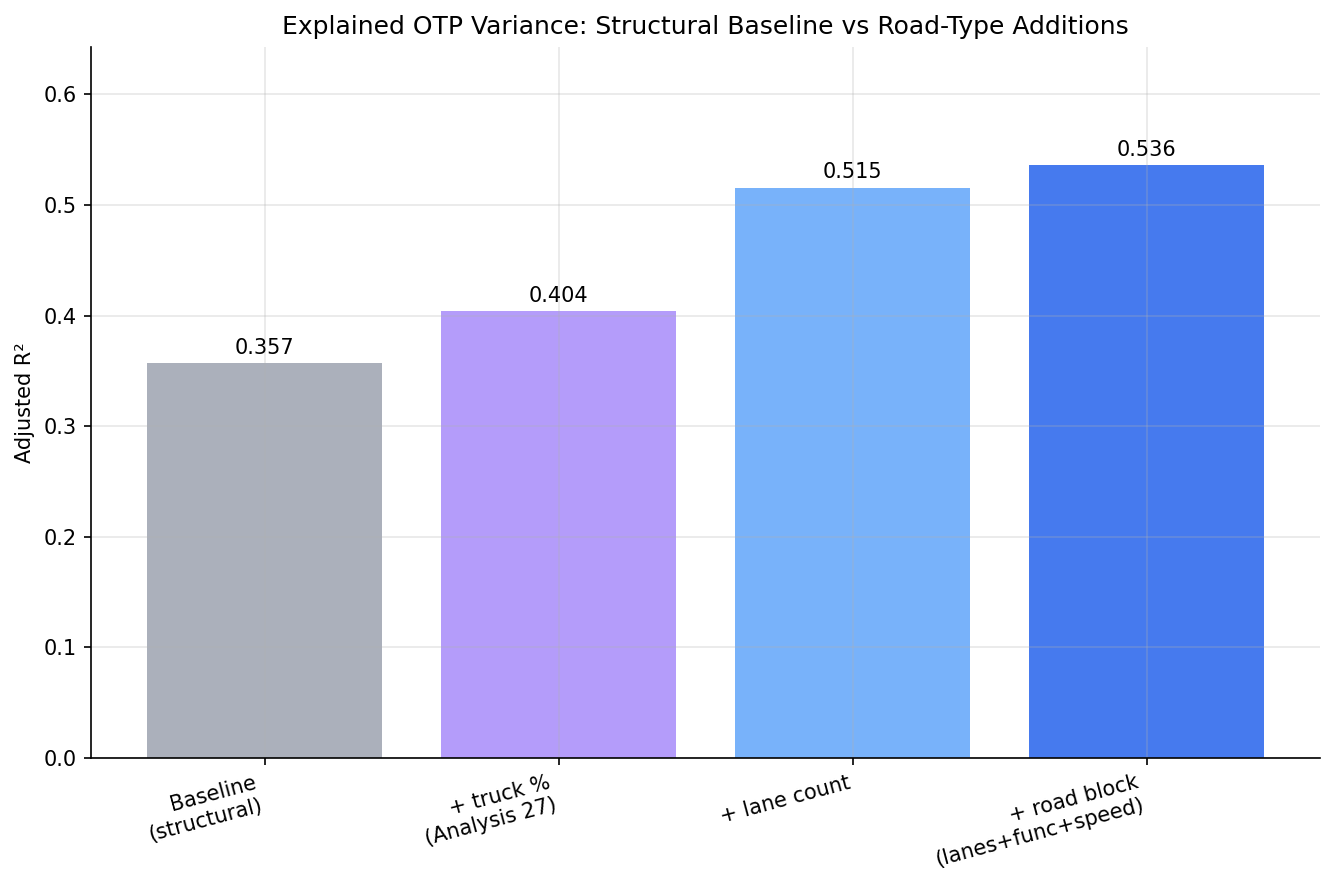

  • output/r2_progression.png -- adjusted R² across the nested models

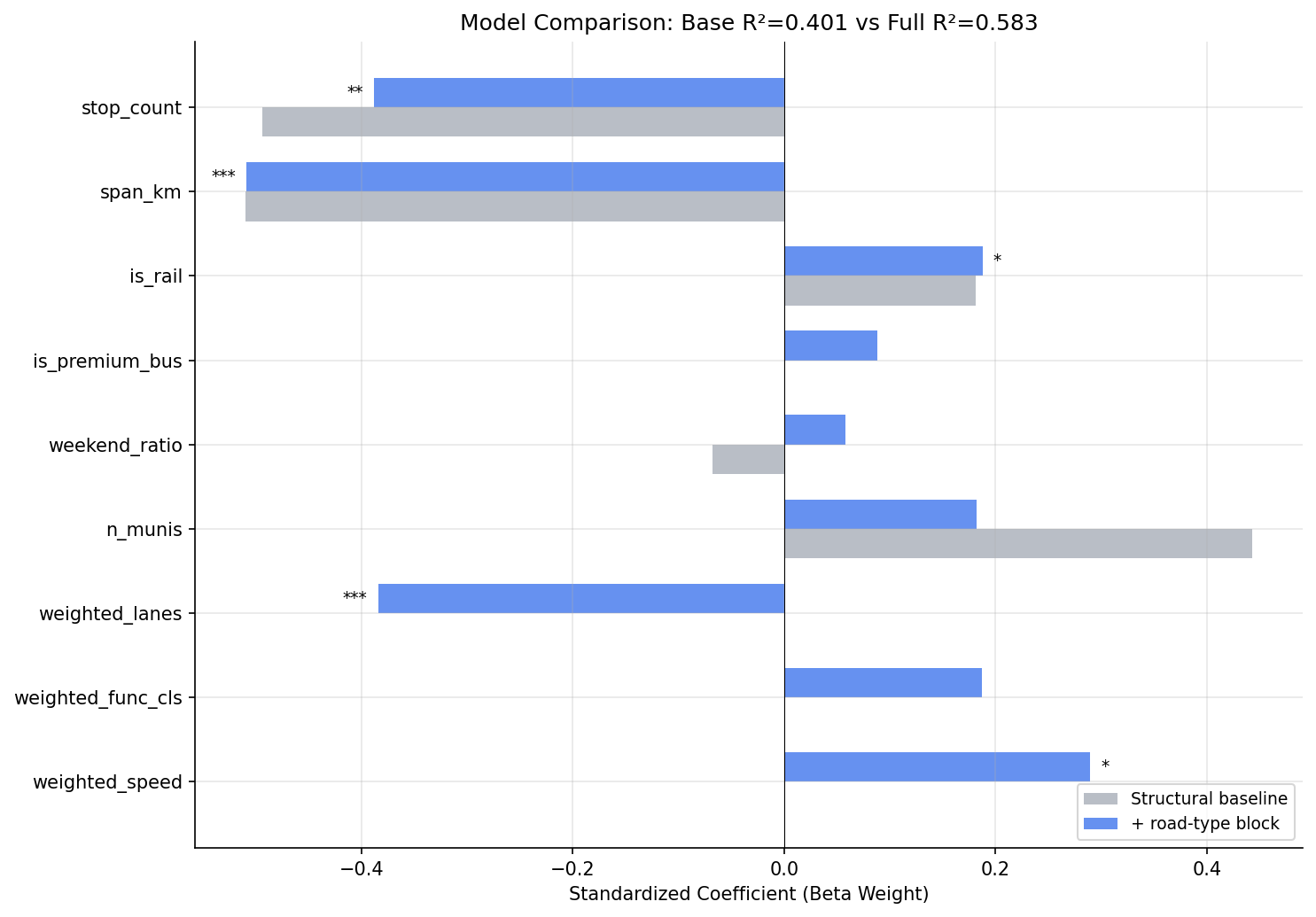

  • output/coefficient_comparison.png -- beta-weight comparison, base vs road-type model

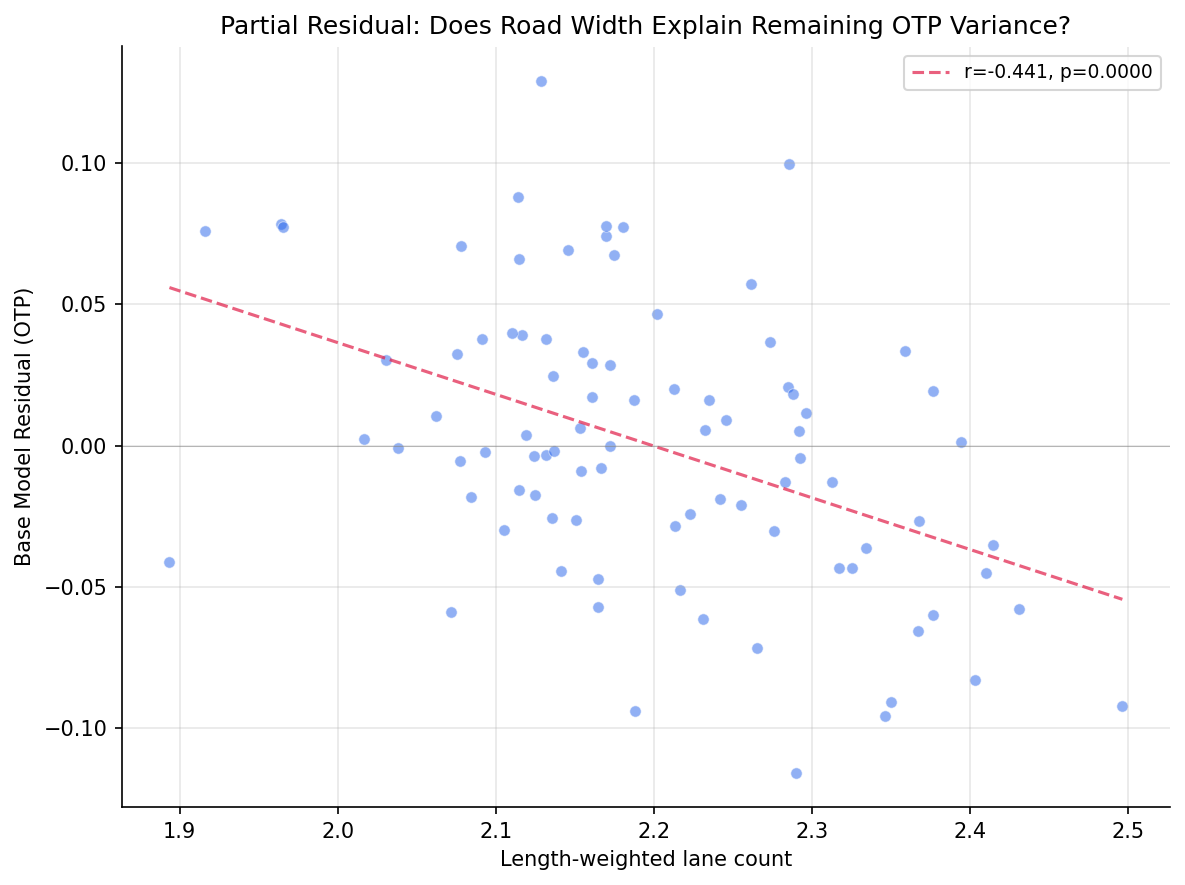

  • output/partial_residual.png -- partial-residual plot for lane count

Source Code

"""Analysis 55: Test whether road type (lanes, functional class, speed) explains OTP beyond structural features."""

import math

import numpy as np
import polars as pl
from scipy import stats

from prt_otp_analysis.common import (
    analysis_dir,
    classify_bus_route,
    correlate,
    phase,
    query_to_polars,
    run_analysis,
    save_chart,
    save_csv,
    setup_plotting,
)
from prt_otp_analysis.common.schemas import ROUTE_ROAD_CLASS, validate

OUT = analysis_dir(__file__)

MIN_MONTHS = 12
MIN_MATCH_RATE = 0.3

ROAD_FEATURES = ["weighted_lanes", "weighted_func_cls", "weighted_speed"]


# ---------------------------------------------------------------------------
# Helpers (replicated from Analysis 18/27 to keep analyses independent)
# ---------------------------------------------------------------------------

def haversine_km(lat1: float, lon1: float, lat2: float, lon2: float) -> float:
    """Return the great-circle distance in km between two lat/lon points."""
    R = 6371.0
    dlat = math.radians(lat2 - lat1)
    dlon = math.radians(lon2 - lon1)
    a = (math.sin(dlat / 2) ** 2
         + math.cos(math.radians(lat1)) * math.cos(math.radians(lat2))
         * math.sin(dlon / 2) ** 2)
    return R * 2 * math.atan2(math.sqrt(a), math.sqrt(1 - a))


def compute_span(lats: list[float], lons: list[float]) -> float:
    """Return the max pairwise haversine distance (km) among a set of points."""
    max_dist = 0.0
    n = len(lats)
    for i in range(n):
        for j in range(i + 1, n):
            d = haversine_km(lats[i], lons[i], lats[j], lons[j])
            if d > max_dist:
                max_dist = d
    return max_dist


def compute_vif(X_raw: np.ndarray, feature_names: list[str]) -> dict[str, float]:
    """Compute Variance Inflation Factor for each predictor."""
    n, k = X_raw.shape
    vifs = {}
    for j in range(k):
        y_j = X_raw[:, j]
        X_other = np.delete(X_raw, j, axis=1)
        X_other = np.column_stack([np.ones(n), X_other])
        beta, _, _, _ = np.linalg.lstsq(X_other, y_j, rcond=None)
        y_hat = X_other @ beta
        ss_res = np.sum((y_j - y_hat) ** 2)
        ss_tot = np.sum((y_j - np.mean(y_j)) ** 2)
        r2_j = 1 - ss_res / ss_tot if ss_tot > 0 else 0.0
        vifs[feature_names[j]] = 1.0 / (1.0 - r2_j) if r2_j < 1.0 else float("inf")
    return vifs


def fit_ols(y: np.ndarray, X_raw: np.ndarray, feature_names: list[str]) -> dict:
    """Fit OLS regression and return results dict."""
    n, k = X_raw.shape
    X = np.column_stack([np.ones(n), X_raw])

    beta, _, _, _ = np.linalg.lstsq(X, y, rcond=None)
    y_hat = X @ beta
    residuals = y - y_hat

    ss_res = np.sum(residuals ** 2)
    ss_tot = np.sum((y - np.mean(y)) ** 2)
    r_squared = 1 - ss_res / ss_tot
    adj_r_squared = 1 - (1 - r_squared) * (n - 1) / (n - k - 1)
    mse = ss_res / (n - k - 1)

    XtX_inv = np.linalg.pinv(X.T @ X)
    se = np.sqrt(np.diag(XtX_inv) * mse)
    t_vals = beta / se
    p_vals = [2 * (1 - stats.t.cdf(abs(t), df=n - k - 1)) for t in t_vals]

    x_stds = np.std(X_raw, axis=0, ddof=1)
    y_std = np.std(y, ddof=1)
    beta_weights = beta[1:] * x_stds / y_std

    return {
        "r_squared": r_squared,
        "adj_r_squared": adj_r_squared,
        "ss_res": ss_res,
        "n": n,
        "k": k,
        "features": ["intercept"] + feature_names,
        "coefficients": beta.tolist(),
        "std_errors": se.tolist(),
        "t_values": t_vals.tolist(),
        "p_values": p_vals,
        "beta_weights": [None] + beta_weights.tolist(),
        "y_hat": y_hat,
        "residuals": residuals,
    }


def f_test_nested(base: dict, full: dict) -> tuple[float, float]:
    """F-test comparing nested models. Returns (F_stat, p_value)."""
    k_diff = full["k"] - base["k"]
    n = full["n"]
    f_stat = ((base["ss_res"] - full["ss_res"]) / k_diff) / (full["ss_res"] / (n - full["k"] - 1))
    f_p = 1 - stats.f.cdf(f_stat, k_diff, n - full["k"] - 1)
    return f_stat, f_p


def print_model(results: dict, label: str) -> None:
    """Print formatted model results."""
    print(f"\n  {label}:")
    print(f"  R2 = {results['r_squared']:.4f}, Adj R2 = {results['adj_r_squared']:.4f}, "
          f"n = {results['n']}, k = {results['k']}")
    print(f"  {'Feature':<20s} {'Coeff':>10s} {'Std Err':>10s} {'p-value':>10s} {'Beta':>10s}")
    print(f"  {'-'*60}")
    for i, feat in enumerate(results["features"]):
        coeff = results["coefficients"][i]
        se = results["std_errors"][i]
        p = results["p_values"][i]
        beta = results["beta_weights"][i]
        beta_str = f"{beta:>10.4f}" if beta is not None else f"{'--':>10s}"
        sig = "***" if p < 0.001 else "**" if p < 0.01 else "*" if p < 0.05 else ""
        print(f"  {feat:<20s} {coeff:>10.6f} {se:>10.6f} {p:>10.4f} {beta_str} {sig}")


# ---------------------------------------------------------------------------
# Data loading
# ---------------------------------------------------------------------------

def load_features() -> pl.DataFrame:
    """Assemble structural features + road-classification data for the regression model."""
    avg_otp_df = query_to_polars(f"""
        SELECT o.route_id, r.route_name, r.mode,
               AVG(o.otp) AS avg_otp, COUNT(*) AS months
        FROM otp_monthly o
        JOIN routes r ON o.route_id = r.route_id
        GROUP BY o.route_id
        HAVING COUNT(*) >= {MIN_MONTHS}
    """)

    stop_counts_df = query_to_polars("""
        SELECT route_id, COUNT(DISTINCT stop_id) AS stop_count
        FROM route_stops GROUP BY route_id
    """)
    trips_df = query_to_polars("""
        SELECT route_id,
               MAX(trips_wd) AS max_wd,
               MAX(trips_sa) AS max_sa,
               MAX(trips_su) AS max_su
        FROM route_stops GROUP BY route_id
    """)
    munis_df = query_to_polars("""
        SELECT rs.route_id, COUNT(DISTINCT s.muni) AS n_munis
        FROM route_stops rs
        JOIN stops s ON rs.stop_id = s.stop_id
        WHERE s.muni IS NOT NULL AND s.muni != '0'
        GROUP BY rs.route_id
    """)
    stops_by_route_df = query_to_polars("""
        SELECT rs.route_id, s.lat, s.lon
        FROM route_stops rs
        JOIN stops s ON rs.stop_id = s.stop_id
        WHERE s.lat IS NOT NULL AND s.lon IS NOT NULL
    """)
    spans = []
    for route_id in stops_by_route_df["route_id"].unique().sort().to_list():
        subset = stops_by_route_df.filter(pl.col("route_id") == route_id)
        span_km = compute_span(subset["lat"].to_list(), subset["lon"].to_list())
        spans.append({"route_id": route_id, "span_km": span_km})
    span_df = pl.DataFrame(spans)

    road_df = query_to_polars("""
        SELECT route_id, weighted_lanes, weighted_func_cls, weighted_speed,
               arterial_share, divided_share, match_rate, n_segments, total_length_ft
        FROM route_road_class
    """)
    validate(road_df, ROUTE_ROAD_CLASS, subset=True)

    truck_df = query_to_polars("SELECT route_id, avg_truck_pct FROM route_traffic")

    df = avg_otp_df
    df = df.join(stop_counts_df, on="route_id", how="left")
    df = df.join(trips_df, on="route_id", how="left")
    df = df.join(munis_df, on="route_id", how="left")
    df = df.join(span_df, on="route_id", how="left")
    df = df.join(road_df, on="route_id", how="inner")
    df = df.join(truck_df, on="route_id", how="left")

    df = df.with_columns(
        pl.when(pl.col("max_wd") > 0)
        .then((pl.col("max_sa") + pl.col("max_su")) / (2.0 * pl.col("max_wd")))
        .otherwise(0.0)
        .alias("weekend_ratio"),
    )
    df = df.with_columns(
        pl.when(pl.col("mode") == "RAIL").then(1.0).otherwise(0.0).alias("is_rail"),
    )
    df = df.with_columns(
        pl.when(pl.col("mode") == "BUS")
        .then(pl.col("route_id").map_elements(classify_bus_route, return_dtype=pl.Utf8))
        .otherwise(pl.lit("non_bus"))
        .alias("bus_subtype"),
    )
    df = df.with_columns(
        pl.when(pl.col("bus_subtype").is_in(["busway", "flyer", "express", "limited"]))
        .then(1.0)
        .otherwise(0.0)
        .alias("is_premium_bus"),
    )

    # Road-type features and the structural baseline must be present.
    df = df.drop_nulls(subset=["stop_count", "span_km", "weekend_ratio", "n_munis"] + ROAD_FEATURES)

    return df


# ---------------------------------------------------------------------------
# Charts
# ---------------------------------------------------------------------------

def make_lanes_scatter(df: pl.DataFrame) -> None:
    """Bivariate scatter: lane count vs OTP."""
    plt = setup_plotting()
    fig, ax = plt.subplots(figsize=(8, 6))

    lanes = df["weighted_lanes"].to_numpy()
    otp = df["avg_otp"].to_numpy()
    modes = df["mode"].to_list()
    bus_mask = np.array([m == "BUS" for m in modes])
    rail_mask = ~bus_mask

    ax.scatter(lanes[bus_mask], otp[bus_mask], alpha=0.5, s=30, color="#2563eb",
               edgecolors="white", linewidth=0.5, label="Bus", zorder=2)
    if np.any(rail_mask):
        ax.scatter(lanes[rail_mask], otp[rail_mask], alpha=0.7, s=50, color="#dc2626",
                   marker="D", edgecolors="white", linewidth=0.5, label="Rail", zorder=3)

    slope, intercept, r, p, _ = stats.linregress(lanes, otp)
    x_line = np.array([lanes.min(), lanes.max()])
    ax.plot(x_line, slope * x_line + intercept, color="#e11d48", linewidth=1.5,
            linestyle="--", alpha=0.7, label=f"fit: r={r:.3f}, p={p:.4f}")

    ax.set_xlabel("Length-weighted lane count")
    ax.set_ylabel("Average OTP")
    ax.set_title("Road Width (Lane Count) vs On-Time Performance")
    ax.legend(fontsize=9)
    save_chart(fig, OUT / "lanes_vs_otp_scatter.png")


def make_r2_progression(model_specs: list[tuple[str, dict]]) -> None:
    """Bar chart of adjusted R^2 across the nested models (same sample)."""
    plt = setup_plotting()
    fig, ax = plt.subplots(figsize=(9, 6))

    labels = [label for label, _ in model_specs]
    adj_r2 = [m["adj_r_squared"] for _, m in model_specs]
    colors = ["#9ca3af", "#a78bfa", "#60a5fa", "#2563eb"][: len(labels)]

    bars = ax.bar(labels, adj_r2, color=colors, alpha=0.85)
    for bar, val in zip(bars, adj_r2):
        ax.text(bar.get_x() + bar.get_width() / 2, val + 0.005, f"{val:.3f}",
                ha="center", va="bottom", fontsize=10)

    ax.set_ylabel("Adjusted R²")
    ax.set_title("Explained OTP Variance: Structural Baseline vs Road-Type Additions")
    ax.set_ylim(0, max(adj_r2) * 1.2)
    plt.xticks(rotation=15, ha="right")
    save_chart(fig, OUT / "r2_progression.png")


def make_coefficient_chart(base: dict, full: dict) -> None:
    """Compare standardized coefficients between base and full road-type models."""
    plt = setup_plotting()
    fig, ax = plt.subplots(figsize=(10, 7))

    base_feats = base["features"][1:]
    full_feats = full["features"][1:]
    base_betas = {f: b for f, b in zip(base_feats, base["beta_weights"][1:])}
    full_betas = {f: b for f, b in zip(full_feats, full["beta_weights"][1:])}
    full_pvals = {f: p for f, p in zip(full_feats, full["p_values"][1:])}

    y_pos = np.arange(len(full_feats))
    width = 0.35
    base_vals = [base_betas.get(f, 0.0) for f in full_feats]
    full_vals = [full_betas[f] for f in full_feats]

    ax.barh(y_pos + width / 2, base_vals, width, label="Structural baseline",
            color="#9ca3af", alpha=0.7)
    ax.barh(y_pos - width / 2, full_vals, width, label="+ road-type block",
            color="#2563eb", alpha=0.7)

    for i, f in enumerate(full_feats):
        p = full_pvals[f]
        marker = "***" if p < 0.001 else "**" if p < 0.01 else "*" if p < 0.05 else ""
        val = full_vals[i]
        ax.text(val + 0.01 if val >= 0 else val - 0.01, i - width / 2, marker,
                ha="left" if val >= 0 else "right", va="center", fontsize=9)

    ax.set_yticks(y_pos)
    ax.set_yticklabels(full_feats)
    ax.axvline(0, color="black", linewidth=0.5)
    ax.set_xlabel("Standardized Coefficient (Beta Weight)")
    ax.set_title(f"Model Comparison: Base R²={base['r_squared']:.3f} vs "
                 f"Full R²={full['r_squared']:.3f}")
    ax.legend(loc="lower right", fontsize=9)
    ax.invert_yaxis()
    save_chart(fig, OUT / "coefficient_comparison.png")


def make_partial_residual_chart(df: pl.DataFrame, base: dict) -> None:
    """Partial residual plot: base model residuals vs lane count."""
    plt = setup_plotting()
    fig, ax = plt.subplots(figsize=(8, 6))

    residuals = base["residuals"]
    lanes = df["weighted_lanes"].to_numpy()

    ax.scatter(lanes, residuals, alpha=0.5, s=30, color="#2563eb",
               edgecolors="white", linewidth=0.5)
    slope, intercept, r, p, _ = stats.linregress(lanes, residuals)
    x_line = np.array([lanes.min(), lanes.max()])
    ax.plot(x_line, slope * x_line + intercept, color="#e11d48", linewidth=1.5,
            linestyle="--", alpha=0.7, label=f"r={r:.3f}, p={p:.4f}")

    ax.axhline(0, color="gray", linewidth=0.5, alpha=0.5)
    ax.set_xlabel("Length-weighted lane count")
    ax.set_ylabel("Base Model Residual (OTP)")
    ax.set_title("Partial Residual: Does Road Width Explain Remaining OTP Variance?")
    ax.legend(fontsize=9)
    save_chart(fig, OUT / "partial_residual.png")


# ---------------------------------------------------------------------------
# Main
# ---------------------------------------------------------------------------

@run_analysis(55, "Road Classification and OTP")
def main() -> None:
    """Entry point: load features, fit nested models, compare, chart, and save."""

    with phase("Loading and assembling features"):
        df_all = load_features()
        df = df_all.filter(pl.col("match_rate") >= MIN_MATCH_RATE)
        excluded = df_all.filter(pl.col("match_rate") < MIN_MATCH_RATE)
        n_rail = len(df.filter(pl.col("is_rail") == 1.0))
        n_bus = len(df.filter(pl.col("mode") == "BUS"))
        print(f"  {len(df)} routes after match_rate >= {MIN_MATCH_RATE} filter "
              f"({n_bus} BUS, {n_rail} RAIL)")
        if len(excluded) > 0:
            print(f"  Excluded ({len(excluded)}): "
                  + ", ".join(excluded.sort("match_rate")["route_id"].to_list()))
        print(f"\n  Lane count range: {df['weighted_lanes'].min():.2f} -- "
              f"{df['weighted_lanes'].max():.2f}")
        print(f"  Functional class range: {df['weighted_func_cls'].min():.2f} -- "
              f"{df['weighted_func_cls'].max():.2f}")
        print(f"  Speed range: {df['weighted_speed'].min():.0f} -- "
              f"{df['weighted_speed'].max():.0f} mph")
        print(f"  Median match rate: {df['match_rate'].median():.1%}")

    y = df["avg_otp"].to_numpy()
    base_features = ["stop_count", "span_km", "is_rail", "is_premium_bus",
                     "weekend_ratio", "n_munis"]

    # --- Model 1: structural baseline (Analysis 18 replication) ---
    X_base = np.column_stack([df[f].to_numpy().astype(float) for f in base_features])
    with phase("Fitting structural baseline (6 features)"):
        base = fit_ols(y, X_base, base_features)
        print_model(base, "Structural baseline (6 features)")

    # --- Model 2: + lane count alone ---
    lane_features = base_features + ["weighted_lanes"]
    X_lane = np.column_stack([df[f].to_numpy().astype(float) for f in lane_features])
    with phase("Fitting + lane count"):
        lane_model = fit_ols(y, X_lane, lane_features)
        print_model(lane_model, "Base + lane count")
        f_l, fp_l = f_test_nested(base, lane_model)
        print(f"\n  F-test for lane count: F = {f_l:.3f}, p = {fp_l:.4f}")
        print(f"  Adj R2: {base['adj_r_squared']:.4f} -> {lane_model['adj_r_squared']:.4f}")

    # --- Model 3: full road-type block ---
    full_features = base_features + ROAD_FEATURES
    X_full = np.column_stack([df[f].to_numpy().astype(float) for f in full_features])
    with phase("Fitting full road-type block (lanes + func_cls + speed)"):
        full = fit_ols(y, X_full, full_features)
        print_model(full, "Base + road-type block")
        f_f, fp_f = f_test_nested(base, full)
        print(f"\n  Joint F-test for road-type block: F = {f_f:.3f}, p = {fp_f:.4f}")
        print(f"  R2 change: {base['r_squared']:.4f} -> {full['r_squared']:.4f} "
              f"(+{full['r_squared'] - base['r_squared']:.4f})")
        print(f"  Adj R2 change: {base['adj_r_squared']:.4f} -> {full['adj_r_squared']:.4f} "
              f"(+{full['adj_r_squared'] - base['adj_r_squared']:.4f})")
        if fp_f < 0.05:
            print("  => Road type IS significant after controlling for structural features.")
        else:
            print("  => Road type is NOT significant after controlling for structural features.")

    # --- Model 4: truck_pct comparison (Analysis 27's best traffic predictor) ---
    truck_subset = df.filter(pl.col("avg_truck_pct").is_not_null())
    truck_model = None
    if len(truck_subset) >= 20:
        with phase(f"Fitting + truck_pct comparison (n={len(truck_subset)})"):
            y_t = truck_subset["avg_otp"].to_numpy()
            truck_features = base_features + ["avg_truck_pct"]
            X_t = np.column_stack([truck_subset[f].to_numpy().astype(float) for f in truck_features])
            truck_model = fit_ols(y_t, X_t, truck_features)
            print_model(truck_model, "Base + truck_pct (for comparison)")

    # --- VIF for full model ---
    with phase("VIF (full road-type model)"):
        vifs = compute_vif(X_full, full_features)
        for feat, vif in vifs.items():
            flag = " ** HIGH" if vif > 5 else ""
            print(f"  {feat:<20s} VIF = {vif:.2f}{flag}")

    # --- Descriptive correlations ---
    with phase("Descriptive correlations with OTP"):
        for feat in ROAD_FEATURES + ["arterial_share", "divided_share"]:
            sub = df.drop_nulls(subset=[feat])
            corr = correlate(sub, feat, "avg_otp")
            sig = "*" if corr["pearson_p"] < 0.05 else ""
            print(f"  {feat:<20s} r = {corr['pearson_r']:+.3f}, "
                  f"p = {corr['pearson_p']:.4f} (n={len(sub)}) {sig}")
        print("\n  Road-type collinearity with structural features:")
        for feat in ["stop_count", "span_km"]:
            corr = correlate(df, "weighted_lanes", feat)
            print(f"  weighted_lanes vs {feat:<14s}: r = {corr['pearson_r']:+.3f}, "
                  f"p = {corr['pearson_p']:.4f}")

    # --- Bus-only subgroup ---
    bus_df = df.filter(pl.col("mode") == "BUS")
    with phase(f"Fitting bus-only models ({len(bus_df)} routes)"):
        y_bus = bus_df["avg_otp"].to_numpy()
        bus_base_feats = ["stop_count", "span_km", "is_premium_bus", "weekend_ratio", "n_munis"]
        bus_full_feats = bus_base_feats + ROAD_FEATURES
        X_bus_base = np.column_stack([bus_df[f].to_numpy().astype(float) for f in bus_base_feats])
        X_bus_full = np.column_stack([bus_df[f].to_numpy().astype(float) for f in bus_full_feats])
        bus_base = fit_ols(y_bus, X_bus_base, bus_base_feats)
        bus_full = fit_ols(y_bus, X_bus_full, bus_full_feats)
        f_b, fp_b = f_test_nested(bus_base, bus_full)
        print(f"  Bus-only joint F-test for road-type block: F = {f_b:.3f}, p = {fp_b:.4f}")
        print(f"  Adj R2: {bus_base['adj_r_squared']:.4f} -> {bus_full['adj_r_squared']:.4f}")

    with phase("Saving CSVs"):
        rows = []
        models = [
            (base, "base_6feat"),
            (lane_model, "base_plus_lanes"),
            (full, "base_plus_roadblock"),
            (bus_base, "bus_base"),
            (bus_full, "bus_plus_roadblock"),
        ]
        if truck_model is not None:
            models.append((truck_model, "base_plus_truck"))
        for model, label in models:
            for i, feat in enumerate(model["features"]):
                bw = model["beta_weights"][i]
                rows.append({
                    "model": label,
                    "feature": feat,
                    "coefficient": model["coefficients"][i],
                    "std_error": model["std_errors"][i],
                    "p_value": model["p_values"][i],
                    "beta_weight": bw if bw is not None else float("nan"),
                    "r_squared": model["r_squared"],
                    "adj_r_squared": model["adj_r_squared"],
                    "n": model["n"],
                })
        save_csv(pl.DataFrame(rows), OUT / "model_comparison.csv")

        vif_df = pl.DataFrame([{"feature": f, "vif": v} for f, v in vifs.items()])
        save_csv(vif_df, OUT / "vif_table.csv")

        summary_df = df.select([
            "route_id", "route_name", "mode", "avg_otp",
            "weighted_lanes", "weighted_func_cls", "weighted_speed",
            "arterial_share", "divided_share", "avg_truck_pct",
            "match_rate", "n_segments", "stop_count", "span_km",
        ]).sort("weighted_lanes", descending=True)
        save_csv(summary_df, OUT / "route_road_class_summary.csv")

    with phase("Generating charts"):
        make_lanes_scatter(df)
        progression = [
            ("Baseline\n(structural)", base),
            ("+ lane count", lane_model),
            ("+ road block\n(lanes+func+speed)", full),
        ]
        if truck_model is None:
            make_r2_progression(progression)
        else:
            # truck_model uses the same sample only if no nulls dropped; guard on n.
            specs = list(progression)
            if truck_model["n"] == base["n"]:
                specs.insert(1, ("+ truck %\n(Analysis 27)", truck_model))
            make_r2_progression(specs)
        make_coefficient_chart(base, full)
        make_partial_residual_chart(df, base)


if __name__ == "__main__":
    main()

Sources

NameTypeWhy It MattersOwnerFreshnessCaveat
otp_monthly table Primary analytical table used in this page's computations. Produced by Data Ingestion. Updated when the producing pipeline step is rerun. Coverage depends on upstream source availability and ETL assumptions.
Upstream sources (5)
  • file data/routes_by_month.csv — Monthly route OTP source table in wide format.
  • file data/PRT_Current_Routes_Full_System_de0e48fcbed24ebc8b0d933e47b56682.csv — Current route metadata and mode classifications.
  • file data/Transit_stops_(current)_by_route_e040ee029227468ebf9d217402a82fa9.csv — Current stop-to-route coverage and trip counts.
  • file data/PRT_Stop_Reference_Lookup_Table.csv — Historical stop reference file with geography attributes.
  • file data/average-ridership/12bb84ed-397e-435c-8d1b-8ce543108698.csv — Average ridership by route and month.
route_road_class table Primary analytical table used in this page's computations. Produced by Road Classification Overlay ETL. Updated when the producing pipeline step is rerun. Coverage depends on upstream source availability and ETL assumptions.
Upstream sources (6)
  • file data/penndot-roadclass/roadwaysegments.json — Cached PennDOT ArcGIS roadwaysegments response (lane count, median type, geometry) for Allegheny County.
  • file data/penndot-roadclass/roadwayadmin.json — Cached PennDOT ArcGIS roadwayadmin response (functional class, posted speed) for Allegheny County.
  • file data/GTFS/shapes.txt — GTFS route shape geometry points.
  • file data/GTFS/trips.txt — GTFS shape-to-route mapping.
  • api PennDOT ArcGIS Roadway Segments Layer (RMSSEG) — Public state-roadway segment attributes including lane count and median type.
  • api PennDOT ArcGIS Roadway Admin Layer — Public roadway administrative attributes including FHWA functional class and posted speed limit.
route_traffic table Primary analytical table used in this page's computations. Produced by Traffic Overlay ETL. Updated when the producing pipeline step is rerun. Coverage depends on upstream source availability and ETL assumptions.
Upstream sources (4)
  • file data/penndot-traffic/aadt_raw.json — Cached PennDOT ArcGIS feature response for Allegheny County roadway segments.
  • file data/GTFS/shapes.txt — GTFS route shape geometry points.
  • file data/GTFS/trips.txt — GTFS shape-to-route mapping.
  • api PennDOT ArcGIS Roadway Traffic Layer — Public roadway segment AADT and truck percentage attributes.
route_stops table Primary analytical table used in this page's computations. Produced by Data Ingestion. Updated when the producing pipeline step is rerun. Coverage depends on upstream source availability and ETL assumptions.
Upstream sources (5)
  • file data/routes_by_month.csv — Monthly route OTP source table in wide format.
  • file data/PRT_Current_Routes_Full_System_de0e48fcbed24ebc8b0d933e47b56682.csv — Current route metadata and mode classifications.
  • file data/Transit_stops_(current)_by_route_e040ee029227468ebf9d217402a82fa9.csv — Current stop-to-route coverage and trip counts.
  • file data/PRT_Stop_Reference_Lookup_Table.csv — Historical stop reference file with geography attributes.
  • file data/average-ridership/12bb84ed-397e-435c-8d1b-8ce543108698.csv — Average ridership by route and month.
routes table Primary analytical table used in this page's computations. Produced by Data Ingestion. Updated when the producing pipeline step is rerun. Coverage depends on upstream source availability and ETL assumptions.
Upstream sources (5)
  • file data/routes_by_month.csv — Monthly route OTP source table in wide format.
  • file data/PRT_Current_Routes_Full_System_de0e48fcbed24ebc8b0d933e47b56682.csv — Current route metadata and mode classifications.
  • file data/Transit_stops_(current)_by_route_e040ee029227468ebf9d217402a82fa9.csv — Current stop-to-route coverage and trip counts.
  • file data/PRT_Stop_Reference_Lookup_Table.csv — Historical stop reference file with geography attributes.
  • file data/average-ridership/12bb84ed-397e-435c-8d1b-8ce543108698.csv — Average ridership by route and month.
stops table Primary analytical table used in this page's computations. Produced by Data Ingestion. Updated when the producing pipeline step is rerun. Coverage depends on upstream source availability and ETL assumptions.
Upstream sources (5)
  • file data/routes_by_month.csv — Monthly route OTP source table in wide format.
  • file data/PRT_Current_Routes_Full_System_de0e48fcbed24ebc8b0d933e47b56682.csv — Current route metadata and mode classifications.
  • file data/Transit_stops_(current)_by_route_e040ee029227468ebf9d217402a82fa9.csv — Current stop-to-route coverage and trip counts.
  • file data/PRT_Stop_Reference_Lookup_Table.csv — Historical stop reference file with geography attributes.
  • file data/average-ridership/12bb84ed-397e-435c-8d1b-8ce543108698.csv — Average ridership by route and month.
numpy dependency Runtime dependency required for this page's pipeline or analysis code. Open-source Python ecosystem maintainers. Version pinned by project environment until dependency updates are applied. Library updates may change behavior or defaults.
polars dependency Runtime dependency required for this page's pipeline or analysis code. Open-source Python ecosystem maintainers. Version pinned by project environment until dependency updates are applied. Library updates may change behavior or defaults.
scipy dependency Runtime dependency required for this page's pipeline or analysis code. Open-source Python ecosystem maintainers. Version pinned by project environment until dependency updates are applied. Library updates may change behavior or defaults.
