Analysis

13: Cross-Route Correlation Clustering

Route and Service Drivers

Coverage: 2019-01 to 2025-11 (from otp_monthly).

Built 2026-03-03 02:23 UTC · Commit defd5c8

Page Navigation

Analysis Navigation

Data Provenance

flowchart LR
  13_correlation_clustering(["13: Cross-Route Correlation Clustering"])
  t_otp_monthly[("otp_monthly")] --> 13_correlation_clustering
  01_data_ingestion[["Data Ingestion"]] --> t_otp_monthly
  t_route_stops[("route_stops")] --> 13_correlation_clustering
  01_data_ingestion[["Data Ingestion"]] --> t_route_stops
  t_routes[("routes")] --> 13_correlation_clustering
  01_data_ingestion[["Data Ingestion"]] --> t_routes
  d1_13_correlation_clustering(("numpy (lib)")) --> 13_correlation_clustering
  d2_13_correlation_clustering(("polars (lib)")) --> 13_correlation_clustering
  d3_13_correlation_clustering(("scipy (lib)")) --> 13_correlation_clustering
  classDef page fill:#dbeafe,stroke:#1d4ed8,color:#1e3a8a,stroke-width:2px;
  classDef table fill:#ecfeff,stroke:#0e7490,color:#164e63;
  classDef dep fill:#fff7ed,stroke:#c2410c,color:#7c2d12,stroke-dasharray: 4 2;
  classDef file fill:#eef2ff,stroke:#6366f1,color:#3730a3;
  classDef api fill:#f0fdf4,stroke:#16a34a,color:#14532d;
  classDef pipeline fill:#f5f3ff,stroke:#7c3aed,color:#4c1d95;
  class 13_correlation_clustering page;
  class t_otp_monthly,t_route_stops,t_routes table;
  class d1_13_correlation_clustering,d2_13_correlation_clustering,d3_13_correlation_clustering dep;
  class 01_data_ingestion pipeline;

Findings

Findings: Cross-Route Correlation Clustering

Summary

After detrending (subtracting system-wide monthly mean OTP), hierarchical clustering on pairwise OTP correlations produced 6 clusters (selected by silhouette score optimization). Detrending removes the dominant COVID/seasonal signal that otherwise causes all routes to appear positively correlated, revealing genuine differential behavior.

Key Numbers

Cluster	Routes	Avg OTP	Avg Stops	Character
1	23	66.8%	118	Lowest-performing cluster, high stop count
2	9	74.0%	114	Best-performing cluster
3	27	71.8%	105	Largest cluster, above-average performance
4	11	69.4%	106	Mid-performing
5	13	67.5%	108	Below-average
6	10	68.9%	146	Highest stop count

Silhouette scores ranged from 0.13 to 0.18 (k=6 was optimal at 0.178)
0 route pairs excluded for insufficient overlap

Methodology

Detrending: System-wide monthly mean OTP is subtracted from each route's OTP before computing correlations. This ensures clusters reflect differential route behavior rather than common system-wide trends (COVID, seasonal cycles).
Linkage: Average linkage (valid for non-Euclidean correlation distance), replacing the original Ward's method.
Cluster count: Selected by silhouette score optimization over k=3..10, replacing the hardcoded k=6.
Imputation: Route pairs with insufficient overlap are imputed with median correlation rather than 0.0.

Observations

With detrending, the clusters are more evenly sized and differentiated by OTP level.
The highest stop-count cluster (Cluster 6, 146 avg stops) does not have the worst OTP (68.9%), suggesting that after removing system-wide trends, route complexity alone doesn't determine co-movement.
Low silhouette scores (0.13-0.18) indicate moderate cluster separation -- routes don't form tightly distinct groups. This is expected given that detrended OTP residuals have limited signal.
Without depot or corridor data, the clusters remain descriptive -- we can see which routes move together but cannot explain why.

Caveats

Silhouette scores below 0.25 indicate weak cluster structure. The 6-cluster solution is the best available, but route co-movement may be more continuous than discrete.
All modes are pooled. With only ~3 rail routes, stratification by mode is not feasible.

Review History

2026-02-10: RED-TEAM-REPORTS/2026-02-10-analyses-12-18.md — 5 issues (2 significant). Detrended correlations, average linkage, silhouette-based k selection; cluster composition changed entirely.

Output

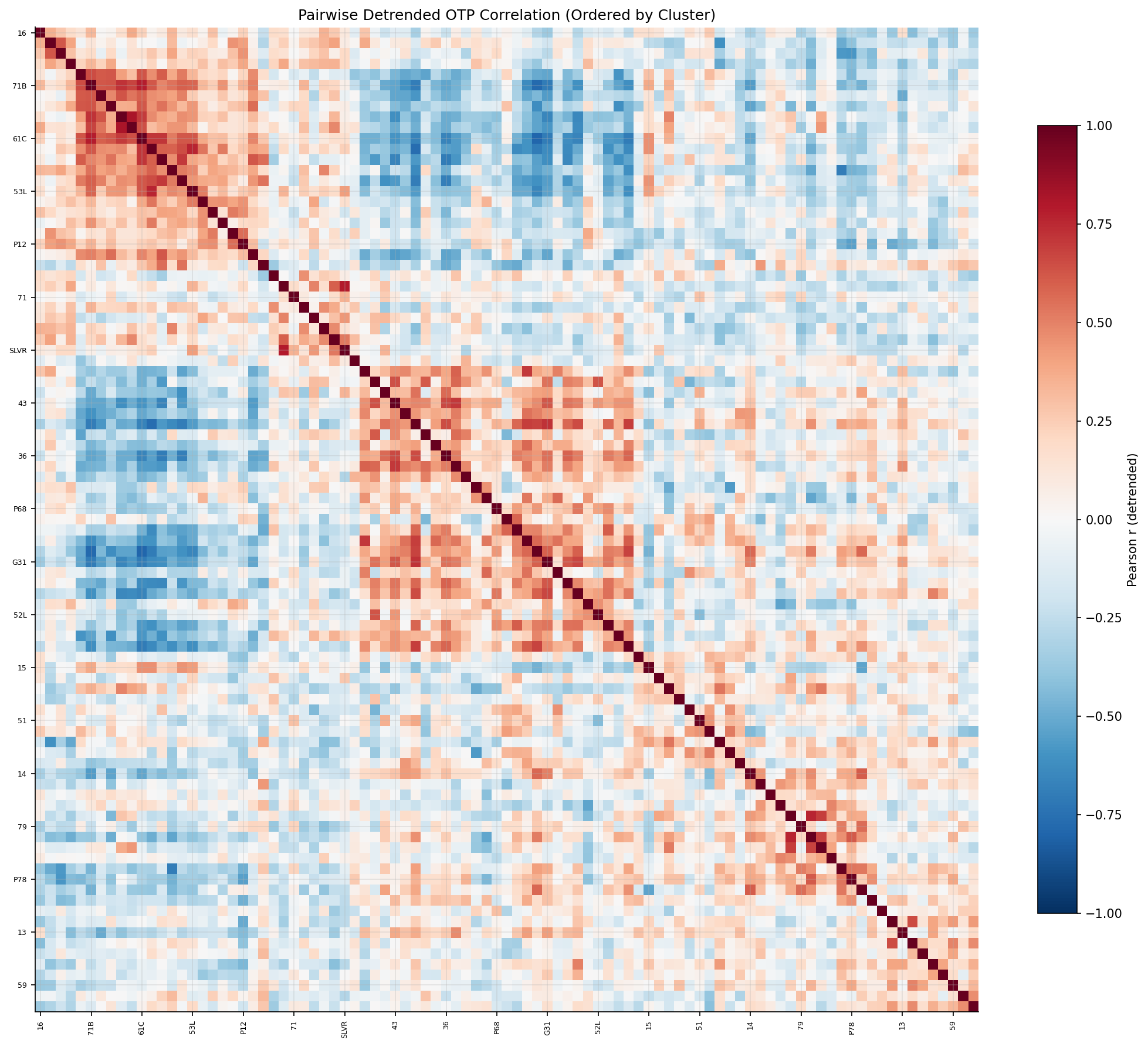

image correlation_heatmap.png
pairwise correlation matrix ordered by cluster.

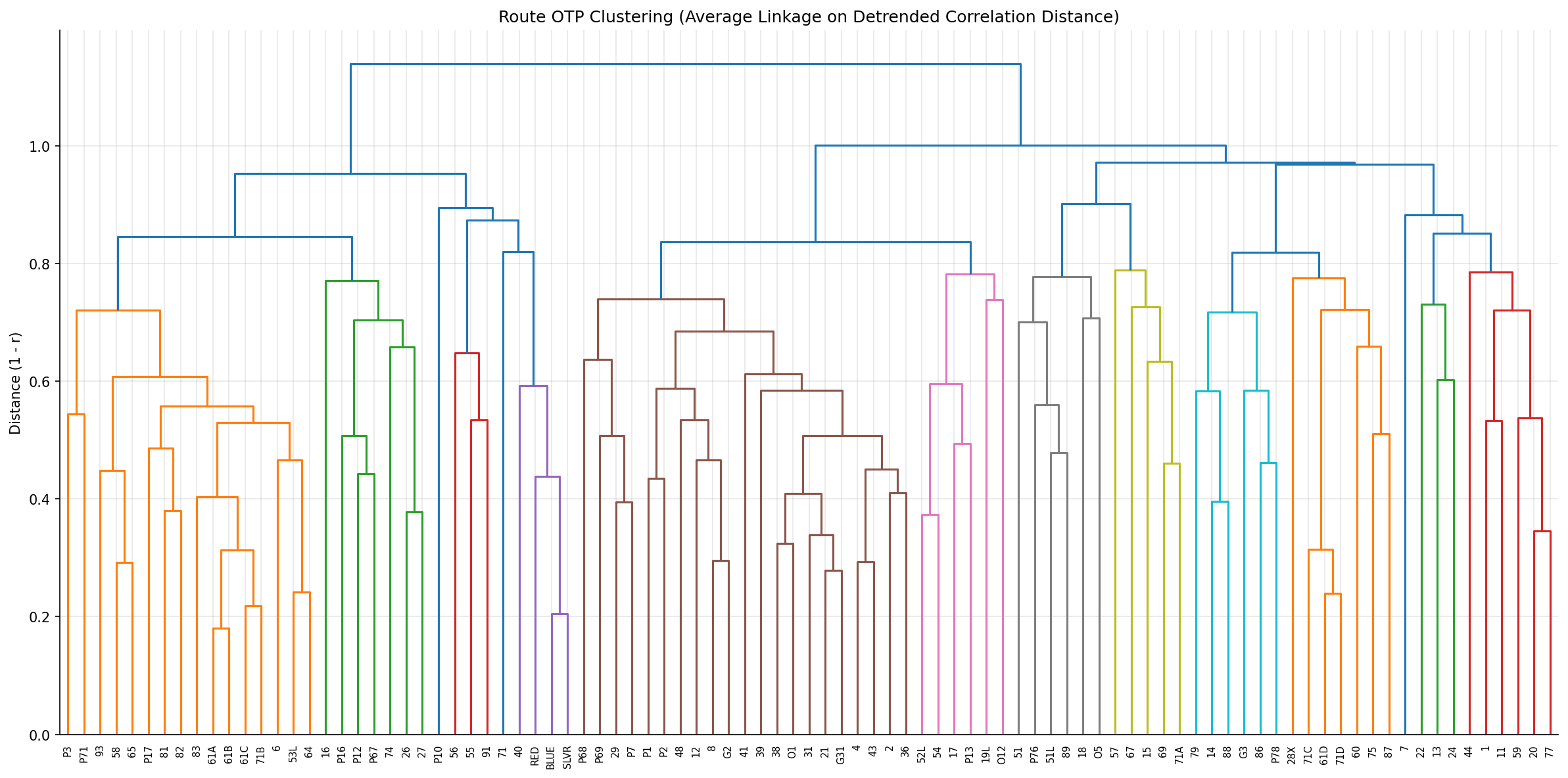

image dendrogram.png
hierarchical clustering dendrogram.

No interactive outputs declared.

data cluster_membership.csv

route-to-cluster assignment with cluster characteristics.

Preview CSV

Expand to load preview.

Methods

Methods: Cross-Route Correlation Clustering

Question

Which routes' OTP values move together over time? Identifying co-moving clusters could reveal shared causal factors -- same corridor, same depot, same traffic bottleneck, or common external shocks.

Approach

Build a route x month matrix of OTP values from otp_monthly.
Filter to routes with at least 36 months of data to ensure meaningful correlations.
Compute pairwise Pearson correlation between every pair of routes' monthly OTP series (using only overlapping months).
Convert correlation to distance (1 - r) and apply Ward's hierarchical clustering via scipy.cluster.hierarchy.
Cut the dendrogram to produce a manageable number of clusters (target ~5-8).
Characterize each cluster by mode, average OTP, stop count, and geographic location.
Visualize with a dendrogram and a clustered correlation heatmap.

Data

Name	Description	Source
`otp_monthly`	Monthly OTP per route (time series)	`prt.db` table
`routes`	Mode and name for labeling	`prt.db` table
`route_stops`	Stop count per route for cluster characterization	`prt.db` table
`stops`	Geography for cluster characterization	`prt.db` table

Notes: route_stops is joined to stops to derive stop count and geographic location per route.

Output

output/cluster_membership.csv -- route-to-cluster assignment with cluster characteristics
output/dendrogram.png -- hierarchical clustering dendrogram
output/correlation_heatmap.png -- pairwise correlation matrix ordered by cluster
